The Largest Machine Ever Built — and Why Venezuela Can't Keep It Running

Venezuela mastered making electricity. Everything after that fell apart.

On the evening of March 7, 2019, the lights went out across almost all of Venezuela. Within minutes, around 30 million people in all 23 states were plunged into darkness. Hospitals scrambled for generators. Subway passengers walked home through unlit streets. Water stopped flowing because the pumps that move it run on electricity. In most of the country, power did not return for more than five days.

It was the worst blackout in Venezuela’s history, but it was not a freak accident. It was the predictable result of decades of decisions — and to understand why, it helps to stop thinking about electricity as something invisible and start thinking about it as water moving through a giant national plumbing system.

Electricity as plumbing

Imagine Venezuela’s power system as an enormous network of pipes.

The hydroelectric plants on the Caroní River — Guri, Caruachi, Macagua — are like colossal pumping stations. The water held behind each dam is stored energy. When that water falls through the turbines, it spins generators, and the generators create electricity.

But producing energy at the plant is not enough. Water sitting in a tank doesn’t reach your kitchen on its own; it has to be pushed. That push is voltage — in plumbing terms, pressure. The amount of electricity actually moving is current — the volume of water flowing through the pipe. And just as forcing too much water through a pipe strains it, too much current through a wire makes it overheat.

This is why Venezuela built its 765,000-volt (765 kV) transmission lines. Raising the voltage is like cranking up the pressure in a long-distance pipeline: it lets the system move huge amounts of power across hundreds of kilometers without needing an impossibly large flow of current — and with far less heat lost along the way.

When the power finally reaches a city, it can’t go straight into homes at 765,000 volts — that’s like aiming a fire hose at a kitchen faucet. Transformers and distribution substations step the pressure down in stages, until it reaches the level used by houses, hospitals, schools, and streetlights.

So the whole system maps neatly onto plumbing:

• Guri is the main reservoir and pumping station.

• Voltage is the pressure.

• Current is the flow.

• Transmission lines are the long-distance pipes.

• Substations are the valves and pressure stations.

• Transformers raise or lower the pressure.

• Distribution lines are the neighborhood pipes.

• Homes and businesses are the faucets.

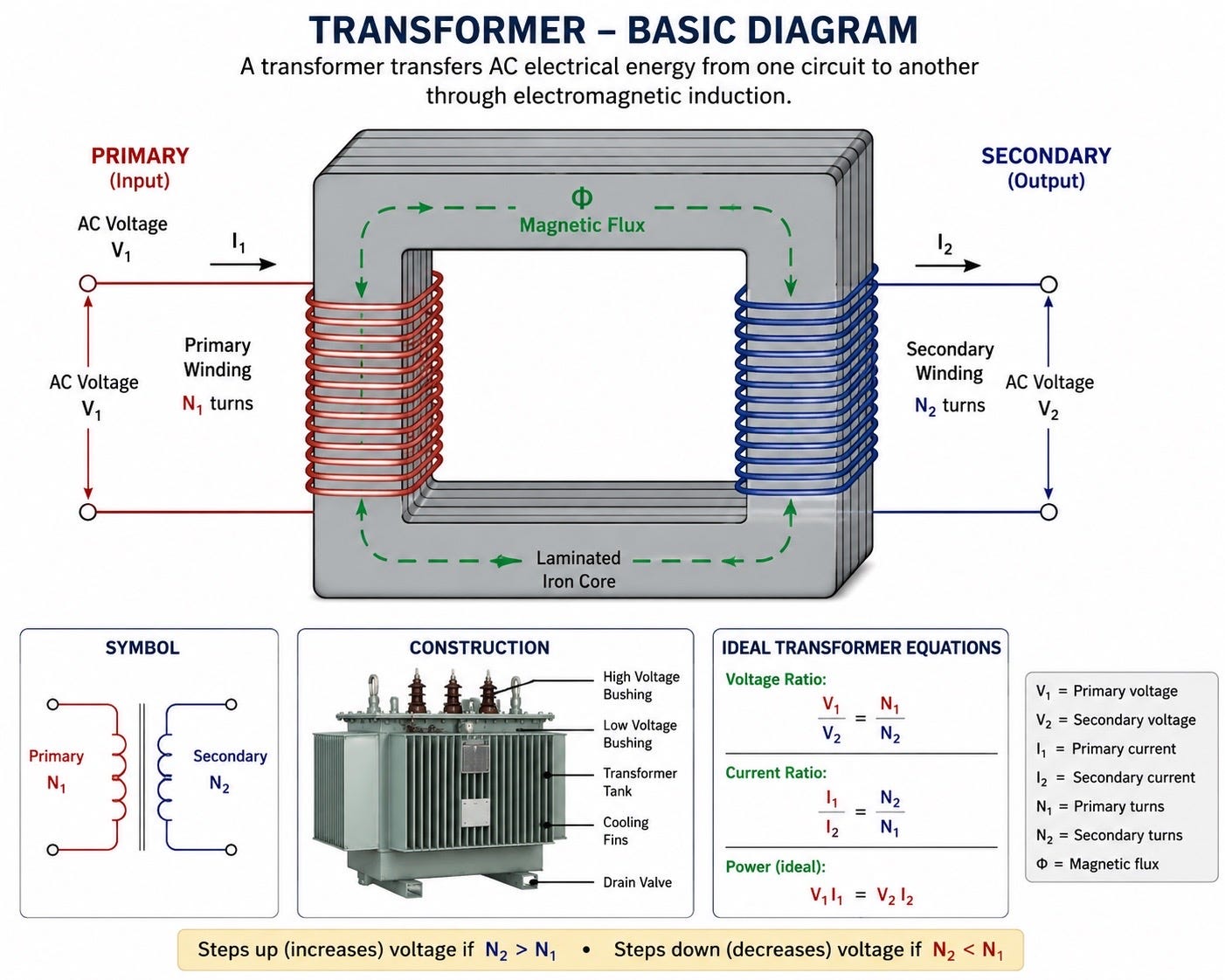

A closer look: what a transformer actually does

Transformers are the least understood piece of this system and one of the most important to the story, so they’re worth a moment.

A transformer is, at its heart, two coils of wire wound around a shared iron core, with no direct connection between them. Electricity flows in on one side — the primary — and out the other — the secondary — but it never crosses directly from one coil to the other. The two sides talk to each other through magnetism.

Here’s the trick. When alternating current flows through the first coil, it creates a constantly shifting magnetic field in the iron core. That moving field, in turn, pushes electricity through the second coil. Nothing physically links the two sides; the energy leaps across as magnetism and reappears as electricity.

What makes the device useful is the number of loops in each coil. If the output coil has more loops than the input coil, the voltage comes out higher than it went in — the transformer “steps up” the pressure. If the output coil has fewer loops, the voltage comes out lower — it “steps down.”

In our plumbing terms, a transformer is a gearbox for pressure. Just as a bicycle’s gears let you trade pedaling speed for climbing force, a transformer trades voltage for current: step the pressure up and the flow shrinks; step it down and the flow grows. The total energy passing through stays almost the same — the device simply repackages it.

This is why the grid needs transformers at both ends. Near Guri, transformers step the voltage up to 765,000 volts so power can travel across the country with minimal loss. Near each city, other transformers step it back down, in stages, until it is safe for the wiring in your home.

And the object that does all this is far bigger than most people picture. A high-voltage transformer is a massive steel tank filled with insulating oil to keep it from overheating, lined with finned radiators for cooling and topped with tall ceramic “bushings” where the power lines connect. These are the silent grey giants sitting inside substations like San Gerónimo and La Arenosa — and, as we’ll see, they are also the single hardest part of the grid to replace.

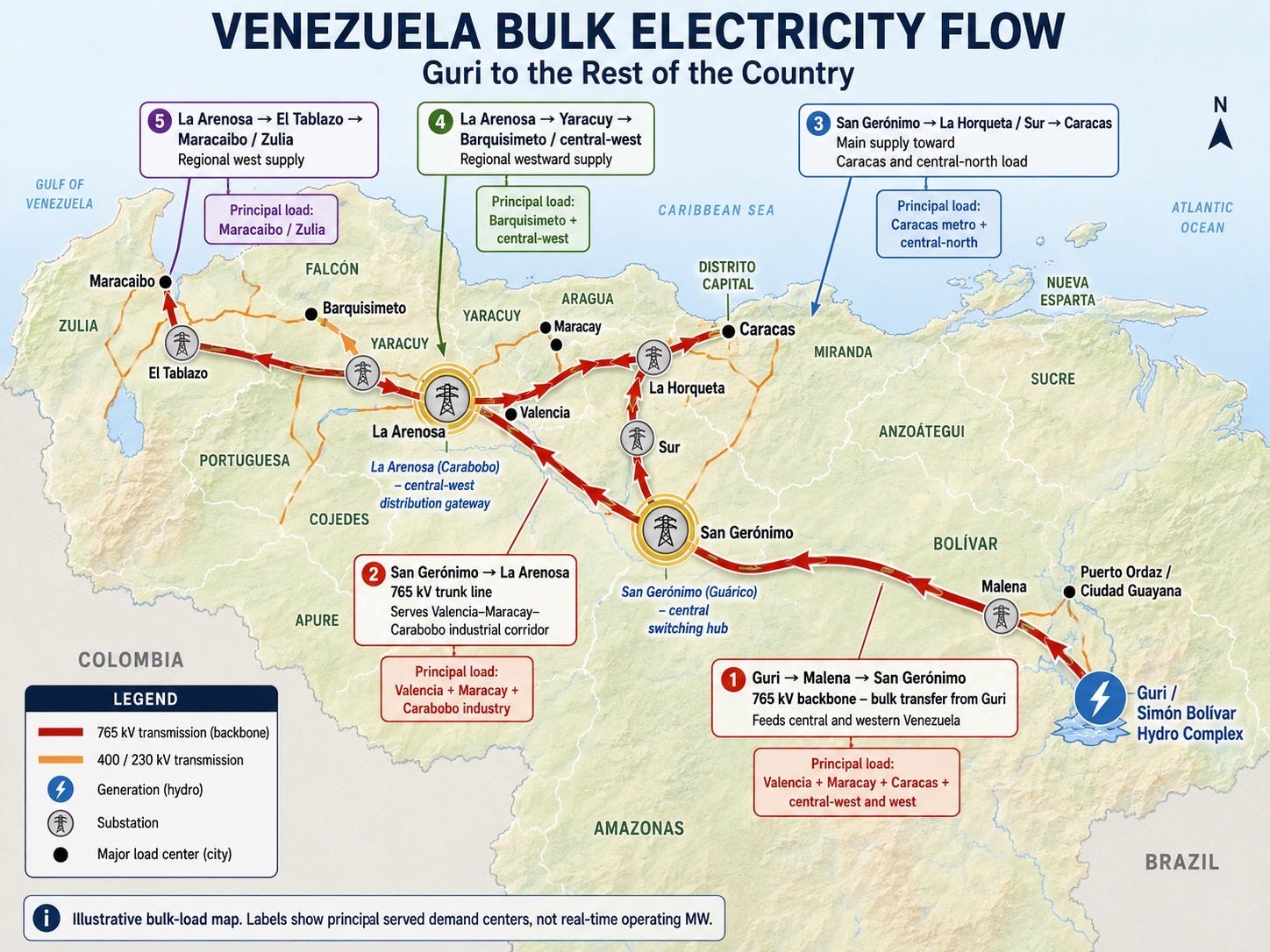

Following the power across the country

It’s worth tracing exactly where Venezuela’s electricity goes, because the geography is the whole problem.

Everything starts at the Guri / Simón Bolívar Hydro Complex, in the southeastern state of Bolívar, near the industrial cities of Puerto Ordaz and Ciudad Guayana. From there, the 765 kV backbone — the thickest, highest-pressure pipe in the system — runs northwest through the Malena substation (also in Bolívar) to the San Gerónimo substation in Guárico state. San Gerónimo is the great central switching hub: nearly all the power that leaves the Caroní passes through it before being routed to the rest of the country.

From San Gerónimo, the flow splits. One path continues west along a 765 kV trunk line to La Arenosa, in Carabobo state — the central-west distribution gateway — which feeds the dense industrial corridor of Valencia (Carabobo) and Maracay (Aragua). A second path runs north through the Sur and La Horqueta substations to supply Caracas (the Capital District) and the central-north.

From La Arenosa, the lower-voltage regional network (the 400 and 230 kV lines) fans out toward the far west: through Yaracuy to Barquisimeto in Lara state, and onward through the El Tablazo substation to Maracaibo, the country’s second-largest city, in Zulia state — well over a thousand kilometers from the dam that powers it.

Look at that map and the danger is obvious. Caracas, Valencia, Maracay, Barquisimeto, and Maracaibo are spread across the entire northern and western breadth of the country — yet every one of them hangs off the same wire running out of one complex in the southeastern corner. Cut the line between Guri and San Gerónimo and the whole populated half of Venezuela goes dark at once. That is precisely what happened in 2019.

A marvel built around a single point of failure

For a time, Guri was the most powerful hydroelectric plant on Earth. When it came online it overtook the United States’ Grand Coulee Dam as the world’s largest by generating capacity, a title it held until Brazil’s Itaipú surpassed it. It remains one of the great engineering achievements of the twentieth century, fed by the immense water resources of the Caroní basin — cheap, abundant, renewable power.

But that triumph carried a hidden danger. Venezuela came to lean on Guri for an enormous share of its electricity — by most estimates 70 to 80 percent of the entire country’s supply. The wider Caroní cascade provides close to half of all the energy the nation consumes. Concentrating that much production in one region turned the whole system into a single point of failure. Whenever something goes wrong at the Caroní complex, or on the lines carrying its power westward, the damage isn’t local — it’s national.

What actually went wrong in 2019

The Maduro government blamed the March 2019 blackout on a U.S. cyberattack and “sabotage.” Venezuelan engineers quickly pointed out the obvious problem with that story: Guri’s control systems aren’t connected to the internet.

What the evidence points to instead is far more ordinary. Wildfires — brush fires in the dry grass beneath the transmission corridor between Guri and San Gerónimo — overheated one of the main 765 kV lines carrying power west. As that line failed, its load shifted onto the others, which overloaded and tripped in a cascade until the grid collapsed. Two engineers reported that the routine clearing of vegetation under the lines had simply stopped roughly three years earlier.

In plumbing terms: nobody had cleared the debris around the main pipeline, a small fire weakened it, and when it burst the surge blew out everything downstream.

Why there was no backup

A healthy grid survives the loss of one big source because something else picks up the slack. Venezuela had no slack.

The country does own thermal (gas- and diesel-fired) power plants — in principle, a counterweight to its dependence on hydropower. During the early 2010s, emergency programs bought 3,000 to 4,000 megawatts of gas turbines and modular units, often through hastily arranged no-bid contracts. But many of those plants were never properly wired into the grid, ran short of the gas or diesel they needed, or were left half-finished. By 2019 the thermal fleet’s real contribution had collapsed, leaving hydropower to carry almost the entire country. So when the lines out of Guri failed, there was nothing to switch on.

The wasted money is staggering. The Tocoma dam (officially the Manuel Piar plant), a 2,320 MW project on the Caroní, broke ground in 2006 with a budget near $3 billion. Costs ballooned past $9 billion, the project has been stalled since around 2015, and it has produced no electricity at all — its construction was tangled up in the Odebrecht corruption scandal that swept Latin America. The Termozulia gas plant absorbed more than $2 billion and likewise isn’t generating. One review by Transparencia Venezuela found that of roughly 17.5 gigawatts of generation projects launched between 2000 and 2014, only about 4.3 gigawatts were ever actually commissioned.

A grid that bleeds power and people

Two slower failures compound the damage.

The first is theft and decay in the pipes themselves. Transmission and distribution losses — power that’s generated but never paid for, much of it stolen — climbed to around 35 percent by 2014, more than double the Latin American average. The state utility, Corpoelec, was recovering only about 30 percent of its operating costs even a decade earlier, leaving nothing to reinvest in maintenance, which causes more losses, in a downward spiral.

The second is the loss of the people who know how to run the machine. The exodus of Venezuelans over the past decade hollowed out Corpoelec’s engineering ranks. A grid is not a set-and-forget device; it needs skilled hands constantly maintaining, balancing, and repairing it. As that expertise left the country, the knowledge to keep the system stable left with it.

Energy experts agree the system was failing from within — from more than two decades of underinvestment, neglected maintenance, corruption, and the choice to centralize almost everything around the Caroní basin. The 2019 collapse was not the last; another nationwide blackout struck in August 2024, and rationing remains routine, especially early in the year when reservoir levels run low.

Why repairing the existing network will take years — even done right

It’s tempting to assume the fix is straightforward: clear the brush, repair the 765 kV lines, restore Guri, and the lights come back for good. But even under honest, competent, well-funded management — setting aside corruption entirely — rebuilding a grid of this size is the work of years, not months. The reasons are physical, and they are unforgiving.

The hardest pieces to replace are custom-built and the world is out of them. The large power transformers that sit at substations like San Gerónimo and La Arenosa are not products you order from a catalogue. Each is engineered to a specific voltage and site, hand-wound, and built to order. Before the pandemic, a large power transformer took roughly 7 to 14 months to deliver. Today, with global demand surging from data centers and electrification, lead times routinely run two to four years, and the largest and most specialized units — exactly the extra-high-voltage class a 765 kV system needs — can stretch to five. Only a handful of manufacturers on the planet can build the biggest units at all, and every utility on Earth is now queued behind the same factories.

The equipment is enormous and remote. A single large transformer can weigh hundreds of tons. Getting one to a substation deep in the interior is its own logistics project — specialized rail cars or heavy-haul trucks, sometimes reinforced roads and bridges — before installation and weeks of on-site testing can even begin.

You can’t easily work on a live system. Repairs often require de-energizing a section of the grid, but a network already running with almost no margin has little room to take pieces offline without risking the very blackouts you’re trying to prevent. Work has to be sequenced carefully, slowly, and in stages.

The control systems must be rebuilt too. The protection relays and monitoring systems that detect a fault and isolate it before it cascades — the safeguards that failed in 2019 — have to be re-engineered, configured, tested, and commissioned across the whole network. That is painstaking engineering work that cannot be rushed.

And the expertise has to be rebuilt with it. Money can buy a transformer; it cannot instantly recreate a generation of engineers who understood this specific system and emigrated. Training and rehiring a skilled workforce is itself a multi-year effort.

It is worth remembering that the system being repaired was not built overnight either. Guri’s construction spanned from 1963 to its final inauguration in 1986 — more than two decades. Restoring and modernizing that infrastructure, with today’s equipment shortages, will not be faster than it was to build in the first place.

Here is the most telling part: this isn’t a uniquely Venezuelan trap. In the United States and Europe, the equipment queue has grown so long that wealthy, well-run companies building new data centers are increasingly choosing to install their own on-site generation rather than wait years to connect to the grid. If the richest, best-managed buyers in the world are routing around the central network because the central network can’t deliver in time, the lesson for a country rebuilding from collapse is hard to miss.

The realistic path: bring the power closer to the people

This points to a different strategy for the near term: generate more electricity close to where people actually use it, instead of pushing nearly all of it across a thousand kilometers of fragile backbone from a single corner of the country.

Local and regional generation — gas plants near Caracas and Maracaibo, solar where it makes sense, smaller modular units that can be deployed in months rather than years — does several things at once. It eases the load on weakened transmission corridors. It limits how far a single failure can spread, so a fire near San Gerónimo no longer darkens Maracaibo. And it can be brought online far faster than a chain of custom extra-high-voltage transformers can be manufactured, shipped, and installed.

This does not replace the national grid, and it does not erase the need for the long, expensive repairs the backbone still requires. But it can keep the lights on in more places while that slow work proceeds — and, just as importantly, it begins to dismantle the political centralism that hung an entire nation’s electricity on one river.

Because the crisis was never only about producing electricity. It is about producing it, pressurizing it, moving it across the country, stepping it down safely, and delivering it reliably to the places where people live. Venezuela’s tragedy is that it mastered the first step magnificently — and let every step after it fall apart.
